Device configuration and system check

This article will explain how to conduct system checks to evaluate the system's compliance with its specified requirement.

If you are a room host, speaker or attendee, it's suggested that you perform a system check to make sure you are meeting the minimal technical requirements and that all settings are correctly set.

Device configuration

If you are:

  • A speaker, room host, or administrator joining a session you'll be taking part in
  • An attendee being invited to speak by a room host
  • A speaker, room host, administrator, or attendee networking with other people

You should see a pop-up to configure your devices such as camera, speaker, and microphone, as well as the video quality.

You can toggle your microphone and camera on or off by clicking on the icons on the left and selecting the desired device with the dropdown menu on the right.

Screenshot showing a spreadsheet import interface

You can also choose to join the call without using a camera by selecting the Without Camera option from the camera dropdown. This option is helpful for low-end devices or bad connections and for users that don’t have a camera connected to their computer. It is also great for the Raise Hands option when people just want to ask a question.

Screenshot showing a spreadsheet import interface

Camera Switcher

If you have any of the permissions mentioned above, you can connect multiple cameras to your Live stream and easily switch them when inside a session. To learn how to connect and switch cameras, read this article.

High-fidelity music mode

The High-fidelity music mode will disable any audio processing features and will output high-quality 256kbps audio.

You should enable it if you have a high-quality audio source. To enable the High-fidelity music mode, you need to check the box that says Show advanced options, and then tick High-fidelity music mode checkbox.

If you don't have a professional audio input or are in a noisy environment, we recommend keeping it disabled.

High fidelity mode

Changing the video background

There are two options to change the background:

  • Using a third-party virtual camera. To learn more, click here.
  • Using the InEvent virtual backgrounds. To learn more, click here.

Video quality

By default, the video quality is High Definition (HD). However, you can use the drop-down menu to select other available video quality resolutions - Full HD, and Standard Definition (SD).

Select video quality

Screen sharing is not affected by HD Video. Video quality from screen sharing will show the same resolution as the desktop or application of the screen being shared.
Recommendations for using Full HD resolution

The recommended requirements for viewing Full HD (1080p) content typically involve having hardware capable of handling the resolution smoothly. Here are some general recommendations:

  1. Display: A monitor or television capable of displaying a resolution of 1920 pixels wide by 1080 pixels tall. This could be a Full HD monitor or TV.
  2. Processor: A processor that can handle the decoding and playback of 1080p video content without lagging or stuttering. Most modern processors, including mid-range to high-end CPUs, should be sufficient.
For an optimum experience, it is advised you use computers with i7 Quad-Core Processor or higher.
  1. RAM: Adequate RAM to support the playback of Full HD content without causing slowdowns. Typically, 4GB or more of RAM is recommended.
  2. Internet Connection: For streaming Full HD content, a stable internet connection with sufficient bandwidth is required. The recommended internet speed for streaming Full HD content is usually around 5 Mbps or higher.

System check

If you are experiencing any issues or would like to run a system check, you can click Test my connection.

Screenshot showing a spreadsheet import interface
If you press Test microphone or Test speaker, you will be able to test them without opening the Virtual Lobby testing tool.

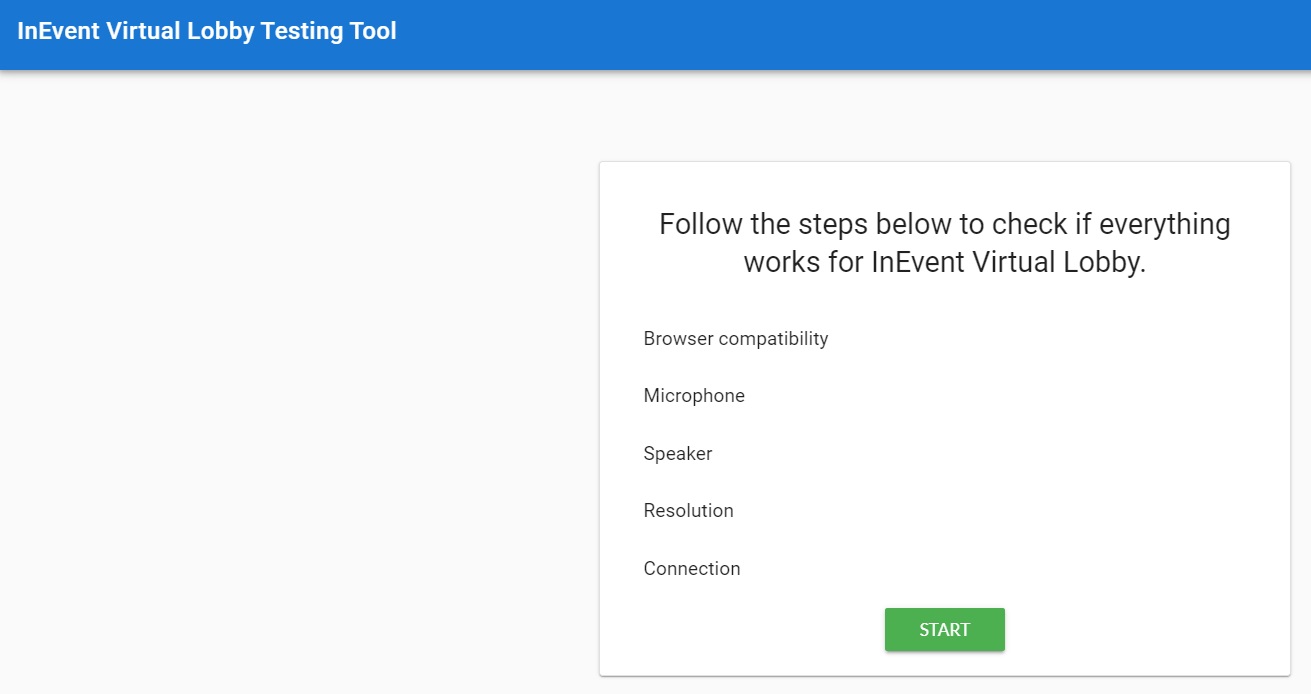

Once you click on Test my connection, you will be taken to the Virtual Lobby testing tool to perform the following tests:

  • Browser compatibility
  • Microphone
  • Speaker
  • Resolution
  • Connection
Before performing a connection test, please disable your AdBlocker and refresh the page.
Screenshot of testing tool

How to run a system check before the event starts?

If you, the event organizer, would like the speakers, room hosts, and attendees to run a system check before the event starts, you should go to the Virtual Lobby to retrieve the Virtual Lobby testing tool link for your event.

In order to do so, simply follow the steps as described below:

  1. First, go to the Virtual Lobby by pressing Event > Virtual Lobby > Preview.
  2. Then, join an activity.
  3. A pop-up will appear for you to configure your devices, press Test my connection, as shown in the previous section.
  4. You will be taken to the Virtual Lobby testing tool.
Screenshot of vl testing tool
The page's URL will be similar to the one highlighted above. It should contain the company nickname and the nickname of the event:
  1. Copy the page's URL and share it with your attendees or copy the URL shown under Event > Details > Event nickname and manually add /test-your-connection.php to it.
Screenshot showing a spreadsheet import interface
  1. Now, share the URL with room hosts, speakers, and attendees so they can all run a system check before the event starts.

What if I'm facing an issue with InEvent's platform?

In case you are facing issues with InEvent's platform, please have a look at our articles about troubleshooting:

If you are still experiencing an issue with the InEvent platform, you can raise an issue report to be reviewed by our Product team.
